VisionFive2 RISC-V Single Board Computer
VisionFive 2 is the world’s first high-performance RISC-V single board computer (SBC) with an integrated GPU. Compared with its last generation, VisionFive 2 has been fully upgraded with significant improvements in the processor work frequency, multimedia processing capabilities, scalability, etc. Its superior performance and reasonable price make VisionFive 2 the best affordable RISC-V development board ever.
Features At A Glance
-
Onboard RV64GC ISA Quad-core 64-bit SoC, operating frequency up to 1.5GHz
-
Supports OpenCL 3.0, OpenGL ES 3.2 and Vulkan 1.2
-
Available in 4GB/8GB LPDDR4 RAM options, and optional wireless module
-
Multiple onboard interfaces, including M.2 / CSI / DSI / HDMI-compatible / eMMC / USB 3.0 / 40PIN GPIO / RJ45 Gigabit Ethernet port / TF card slot, etc
-
Supports 4K@60fps and H264/H265 multi-stream video decoding, 1080p@30fps and H265 multi-stream video encoding
-
Onboard 40PIN GPIO header, compatible with Raspberry Pi series boards
-
Provides wide software compatibility including support for Debian
Specifications
| PROCESSOR | StarFive JH7110 | ||
| CPU | RISC-V U74 Quad-core 64-bit RV64GC ISA SoC With 2MB L2 cache and S7 core, operating frequency up to 1.5GHz |
||
| GPU | IMG BXE-4-32 MC1, operating frequency up to 600MHz | ||
| MEMORY | Optional 4G/8G Byte LPDDR4 | ||
| STORAGE | TF card (Not included) | ||
| CAMERA | MIPI CSI 2lane 1080p@30fps | ||
| DISPLAY | 1 × 2-lane MIPI DSI 1080p@30fps 1 × 4-lane MIPI DSI 2K@30fps (Only one DSI port can be used for display at the same time) 1 × HDMI-compatible 2.0 4K@30fps, 2K@60fps |
||
| USB HOST | 4 × USB 3.0 Type-A port | ||
| USB DEVICE | 1 × USB Device (multiplexed with the USB Type-C port) | ||
| NETWORKING | 1 × Gigabit Ethernet port (main Ethernet port) 1 × 100/10M Ethernet port |
||
| RESET BUTTON | Press the reset button to reboot when in the U-boot mode; Press and hold the reset button for three seconds to reboot after the system boots |
||
| BOOT MODE SWITCH | RGPIO_1 | RGPIO_0 | Boot Mode |
| 0 | 0 | flash | |
| 0 | 1 | TF Card | |
| 1 | 0 | eMMC | |
| 1 | 1 | UART | |
| DEBUG PIN HEADERS | Multiplex pin 8 and pin 10 (physical address) on the 40PIN header, for UART TX and UART RX functions | ||
| USB TYPE-C POWER PORT | Supports Quick Charge input 5V DC (minimum 3A) (up to 30 W) Supports 5~20V fixed voltage input Supports USB Type-C PD 2.0, 9V/2A, 12V/2A, 15V/2A, 20V/2A Supports QC 3.0/2.0 adapter, 9V/2A, 12V/1.5A |
||
| OTHER POWER SUPPLY | 5V input via 40PIN GPIO header PoE port power input, requires external PoE module |
||
| OTHER INTERFACES | 40PIN GPIO M.2 M-Key Solid State Drive socket eMMC socket 2PIN Fan header 3.5mm Audio Jack, 4-pole stereo audio jack |
||
| DIMENSIONS | 100 × 74 × 21mm | ||
| COMPLIANCE | RoHS, FCC, CE | ||
| RECOMMENDED OPERATING AMBIENT TEMPERATURE | 0~50℃ (If the operating temperature of the chip exceeds 85°C, the frequency and voltage of the CPU will be automatically reduced for cooling) | ||
OperatingSystem
Multi-Function
Powerful Performance, Open Source Application Environment, And Rich Software Ecology More Possibilities For VisonFive 2

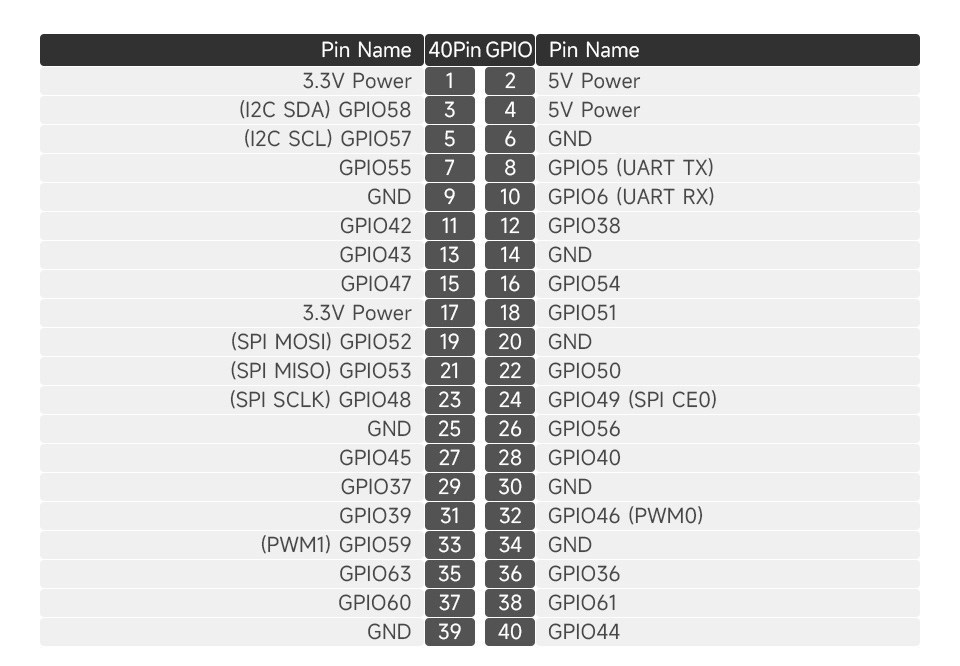

40PIN GPIO Header
* All GPIO pins can be multiplexed to support different functions including
SDIO, Audio, DMIC, SPI, I2C, UART, PWM, CAN
